The successor of the BMP085 sensor,

Our BME / BMP Sensors detect the air pressure and temperature (BMP) and / or air pressure, air humidity and temperature (BME). With its high resolution and the low power consumption of these Sensor modules are Ideal for all Maker. Whether to support height determination for GPS, in the model, or as a weather station, through a universal Interface and common libraries for Arduino, Raspberry & Co. the application Is particularly comfortable. The Sensors were calibrated at the Bosch factory. There are different modes of operation to choose from, from ultra low power to ultra-high resolution (depending on the module).

Measuring range

Pressure:

Temperature:

Humidity:



300 – 1100 hPa

-40 - 85°C

Resolution:





0,02 – 0,06 hPa

to 0.1°C

*0.02 hPa correspond to approx. 17 cm difference in height

Absolute Accuracy:

+/- 0.12 hPa,

+/- 0.5°C



Power consumption:


@3 PA RMS

650 – 0.1 µA

12µA

Interface:

I2C

There are no reviews for this product.

Write a review

Please login or register to review

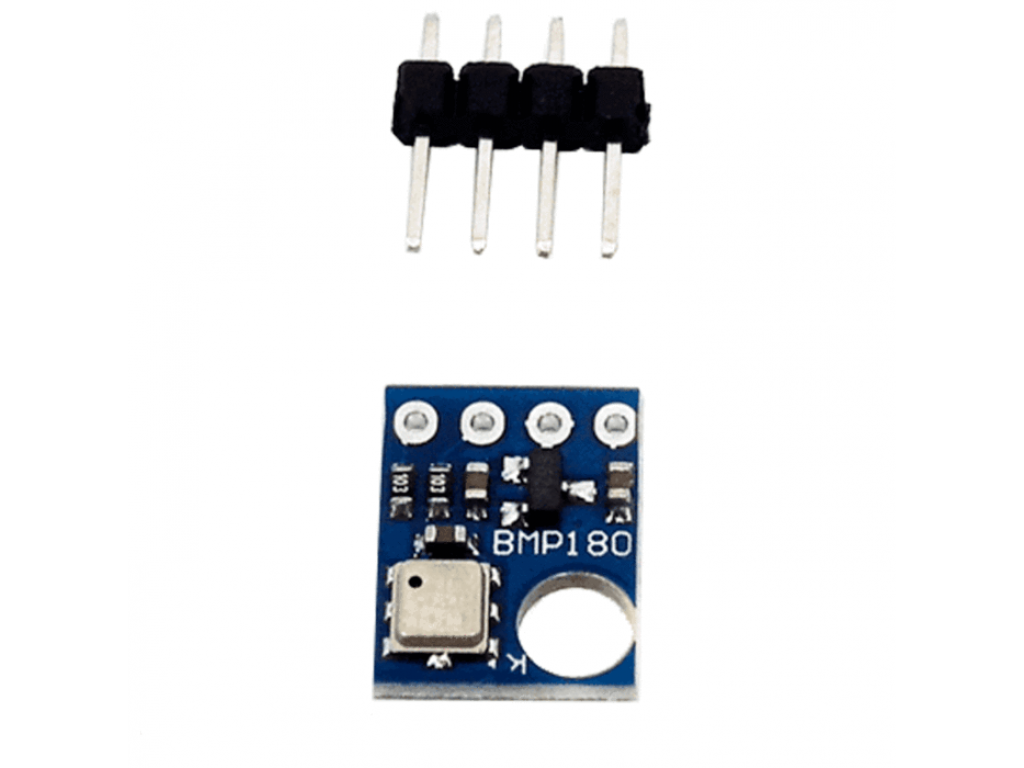

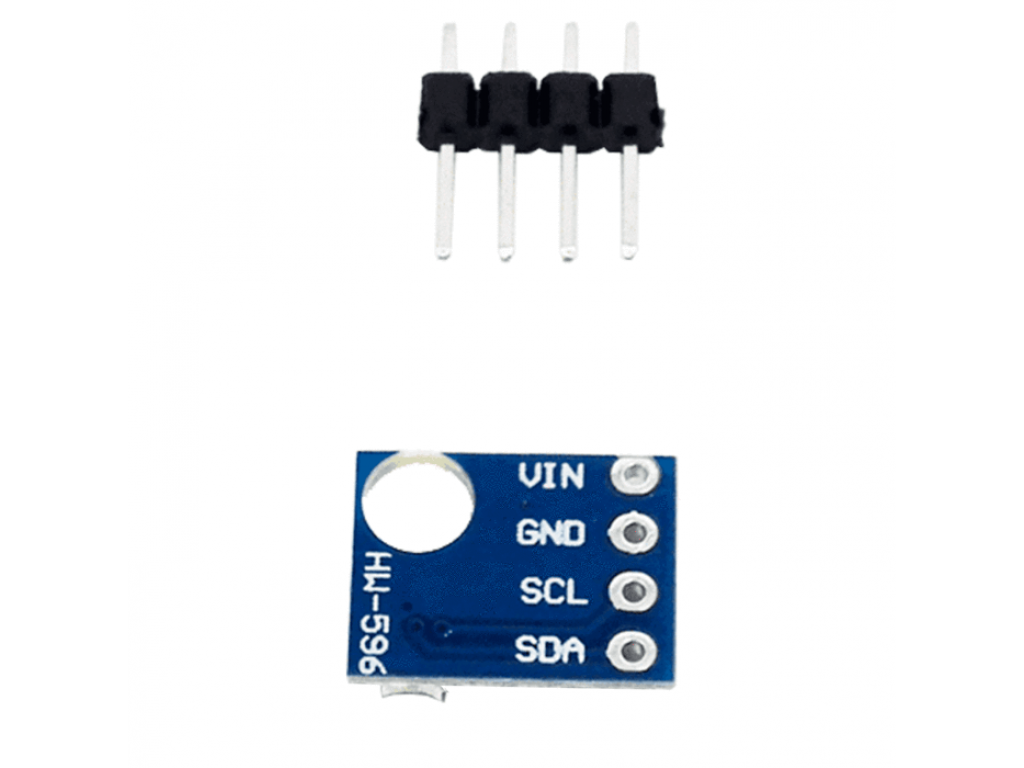

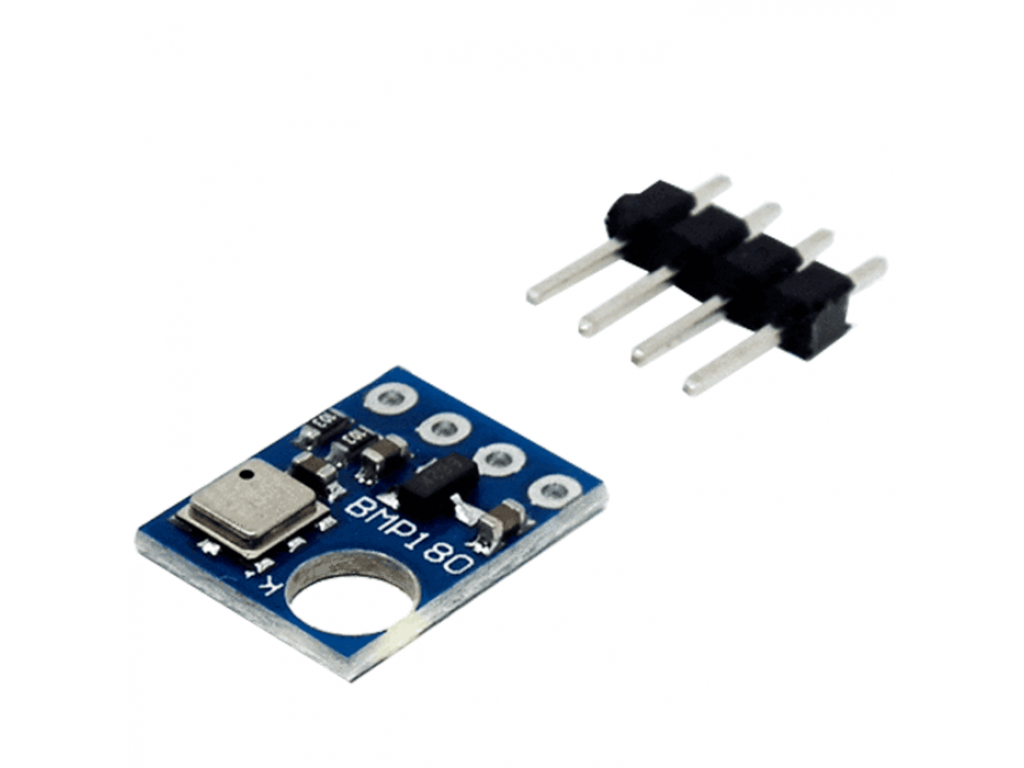

GY-68 BMP180 Barometric Sensor

  • Brand: AZ-Delivery
  • Product Code: BMP180
  • Availability: 7
  • 4.99€

  • Ex Tax: 4.06€

  • 3 or more 4.89€
  • 5 or more 4.79€

Tags: air pressure, RaspberryPi Accessories, Sensors, Barometer, I²C-Bus, Sensor Module, Module, Arduino Accessories, sensor
