This Shield is simply plugged on an Arduino Board and allows up to 4 DC motors, 2 stepper motors or 2 servo motors to control. As an H-bridge of the most powerful and reliable L293D Chip of the load is used and distributed. Thus, you can easily use DC motors and power supplies of up to 36V.

The proven Design allows easily Connect and control motors with an Arduino, and is particularly suitable for quick Prototyping. For beginners, this Shield is well suited to numerous libraries, tutorials and example Sketches to make the control of the direction or speed of motors. For especially recommended we keep the Adafruit Motor Shield Library (AFM), which you can download by default in the Arduino IDE.
Details:
Labeled connections for easy Connect
Compatible with Arduino Mega, Diecimila, Duemilanove and Uno R3
2 connections for 5V servo motors with a connection to the Arduino Timer to smooth the control
To control 4 DC motors, 2 stepper motors or 2 servo motors.
Up to 4 bi-directional DC motors with individual 8-Bit control
Up to 2 stepper motors (unipolar or bipolar) with
single coil, double coil or interleaved stepping
4 H-bridges: provides 0.6 A (1.2 A peak) with thermal protection for motors from 4.5 V to 36V DC
Pull-Down Resistors to the motors to come on when stopping
2 connectors for external power supply, separately for the logic and Motor supply
Status LED for operating display
Reset button

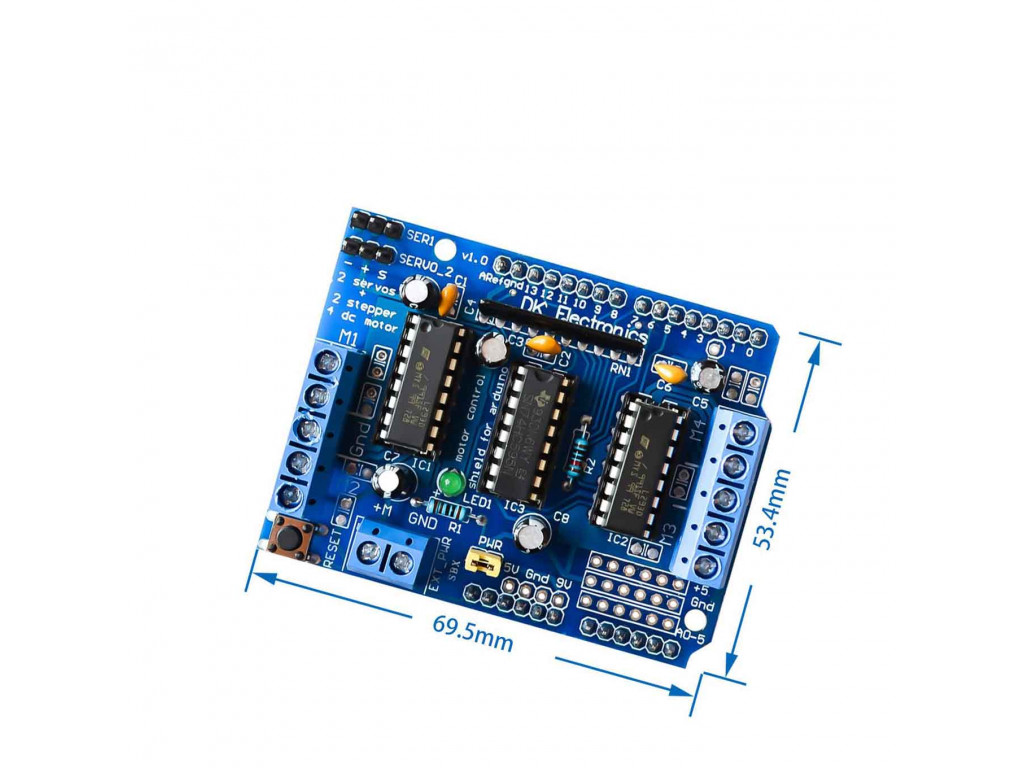

Dimensions:70*55mm

There are no reviews for this product.

Write a review

Please login or register to review

4-channel L293D motor driver Shield stepper motor driver

  • Brand: AZ-Delivery
  • Product Code: L293D Motor Shield
  • Availability: 7
  • 3.99€

  • Ex Tax: 3.24€

  • 3 or more 3.91€
  • 5 or more 3.83€

Tags: Shield, DC motor, L293D
