Nano V3 CH340

Nano V3 CH340
Nano V3 CH340
Nano V3 CH340
Nano V3 CH340
Nano V3 CH340
Nano V3 CH340
Nano V3 CH340
Based on 1 reviews. - Write a review
9.84€
Ex Tax: 8.00€
  • Stock: 26
    26
  • Brand: Generic
  • Model: Nano V3 Ch340 not soldered
  • Weight: 6.00g
  • pkg: 8.50cm x 6.00cm x 0.50cm
  • SKU: YXA135-M
250 sold
Product Views: 24901
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

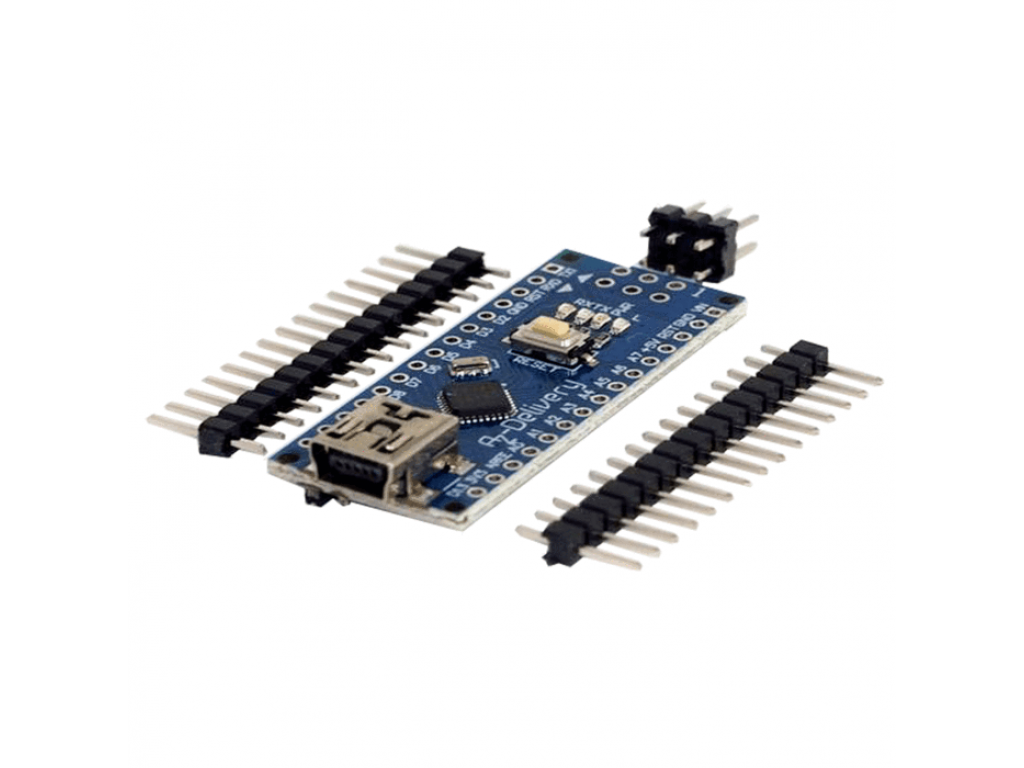

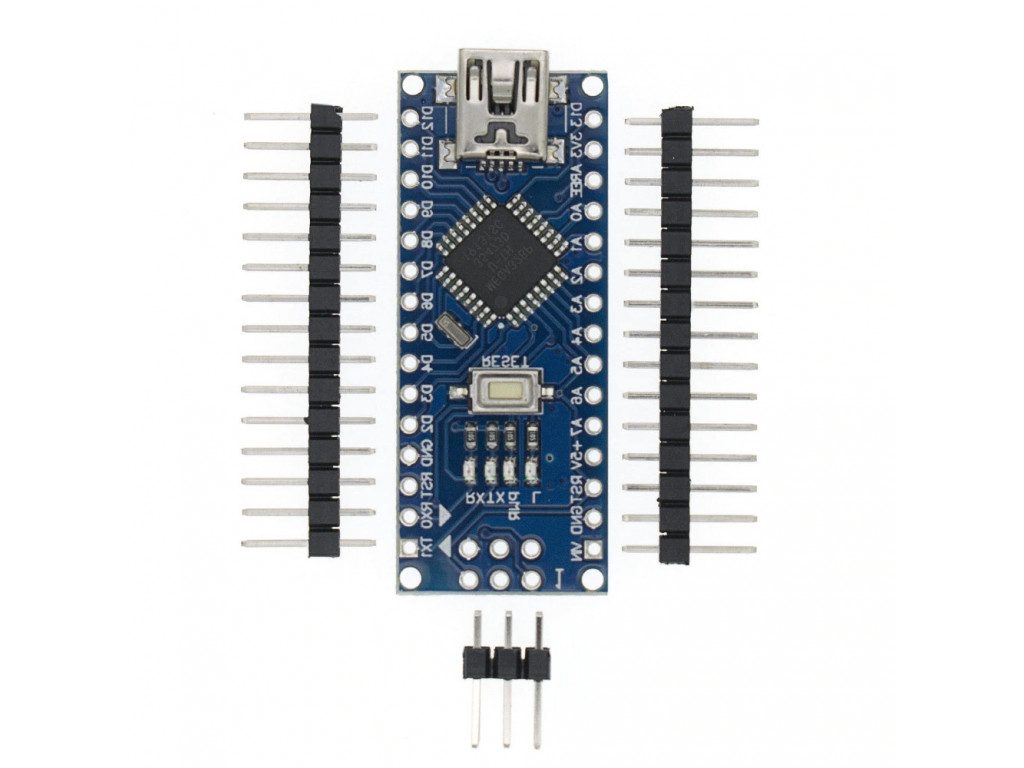

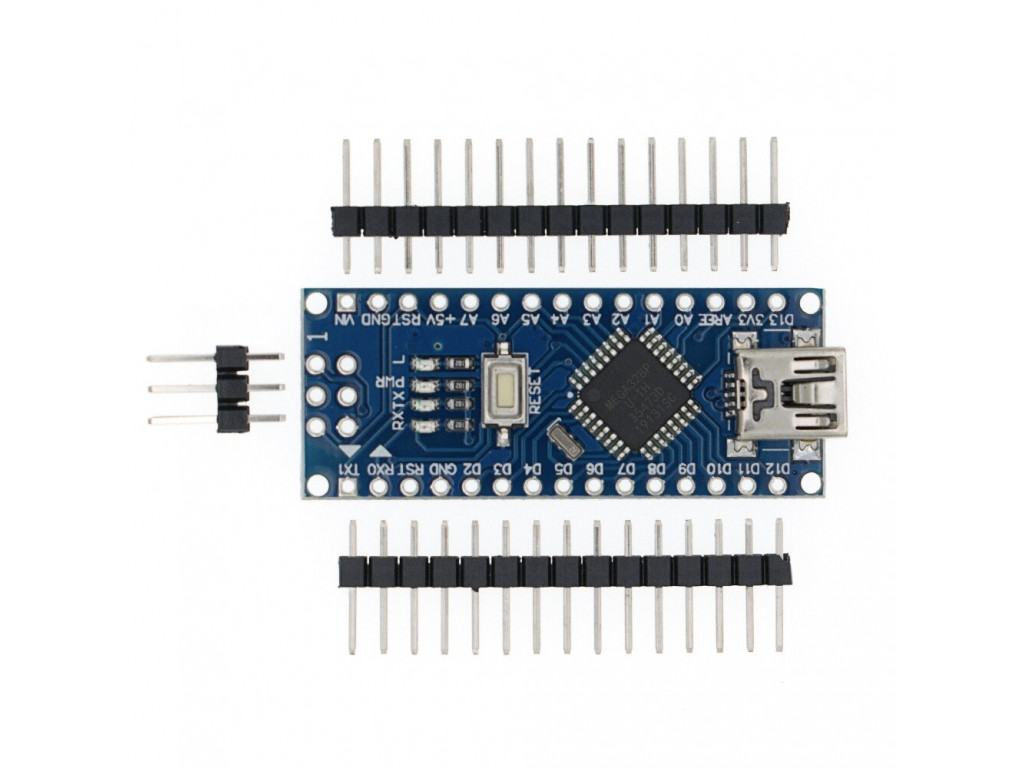

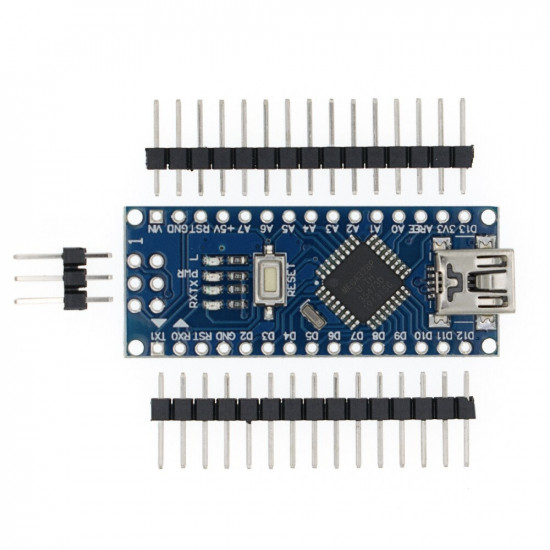

Nano V3, Mega328P,  CH340G USB, Arduino Compatible, Arduino Nano clone Board incl. Pin bars - Ideal for mobile projects

Start with this price module values in the micro-controller development!
The small Board is perfect for the entry-level, and with the built-in USB interface, play in the blink of an eye, the first programs on the Board.

Note: If board is not detected correctly, you can switch to try the Bootloader in the IDE to "Arduino UNO".

Details:
  • Arduino Compatible
  • Arduino Nano clone
  • Atmel ATmega328P-AU MCU
  • CH340G Chip
  • Arduino Bootloader
  • use with arduino software ide
  • 14 digital Input / Output ports: TX, RX, D2 ~ D13
  • 8 analog inputs ports: A0-A7
  • 1 USART RX / TX
  • 6 PWM Ports: D3, D5, D6, D9, D10, D11
  • Operating voltage: 5V
  • Supply voltage: 7-12V
Microcontrollers
Processor ATmega328P
Operating Voltage 5V
Input Voltage 7-9V
CPU Speed 16MHz
Analog In/Out 8 / 0
Digital IO / PWM 14 / 6
EPROM [kB] 1
SRAM [kB] 2
Flash [kB] 32
USB Mini
UART 1
Pinout Picture <a title="bq [CC BY-SA 4.0 (https://creativecommons.org/licenses/by-sa/4.0)], via Wikimedia Commons" href="https://commons.wikimedia.org/wiki/File:Arduino-nano-pinout.png"><img width="128" alt="Arduino-nano-pinout" src="https://upload.wikimedia.org/wikipedia/commons/thumb/e/e4/Arduino-nano-pinout.png/128px-Arduino-nano-pinout.png"></a>

Write a review

Please login or register to review
Tags: Bestseller , Display test , CH340 , Nano V3 , Arduino
