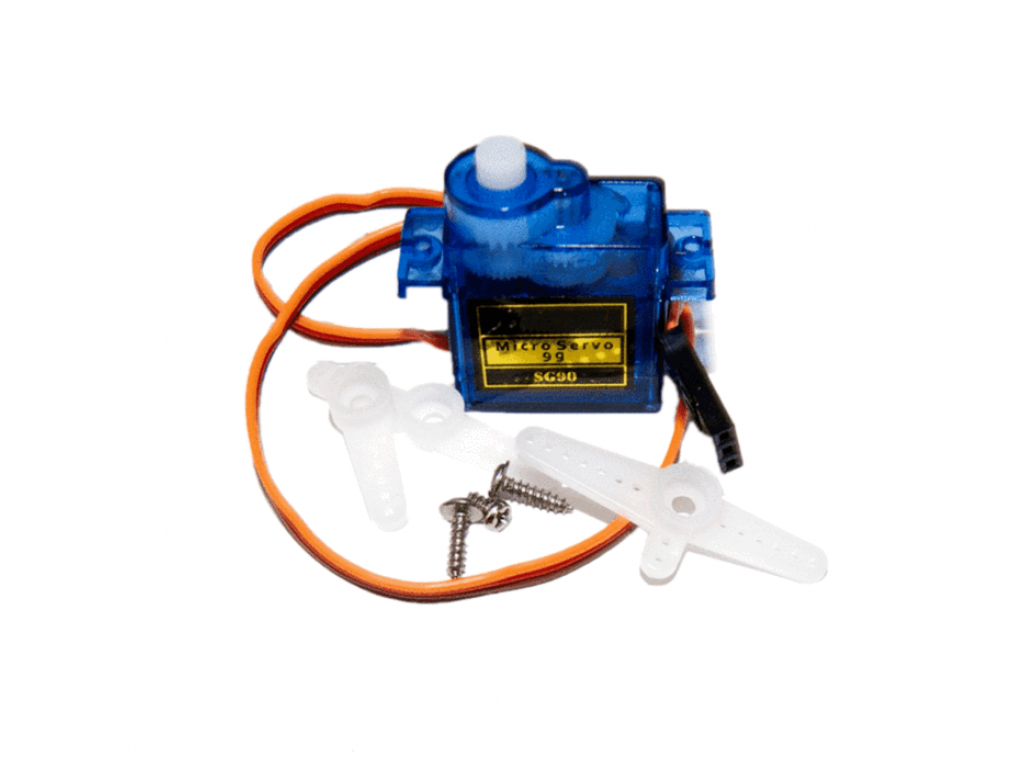

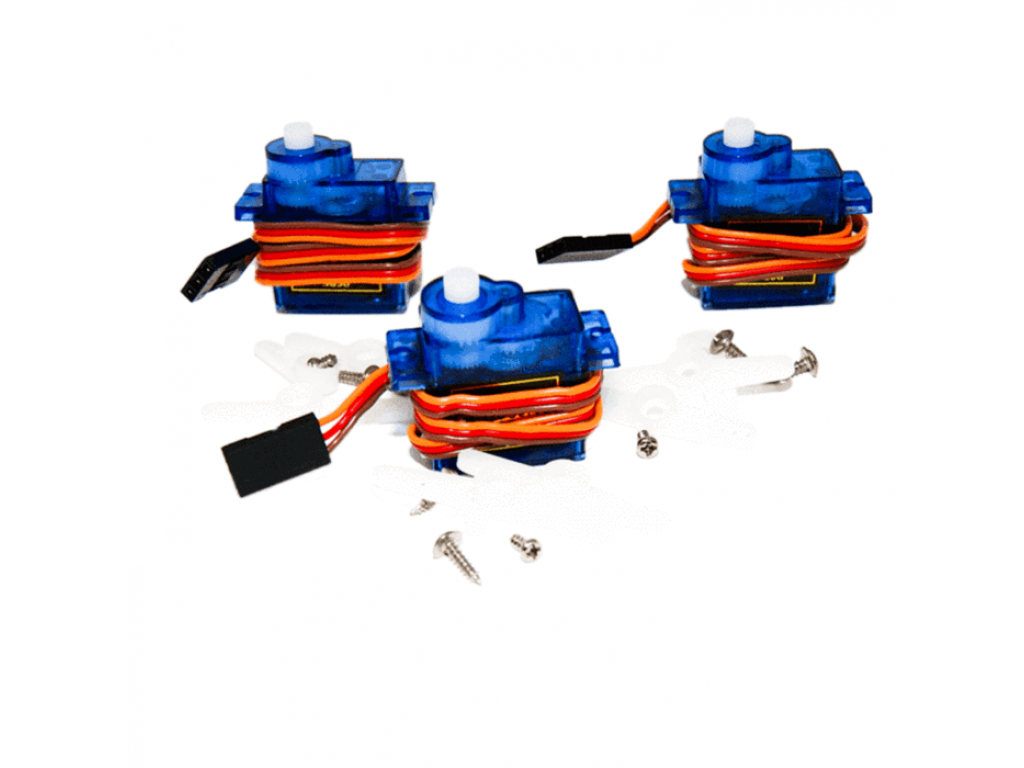

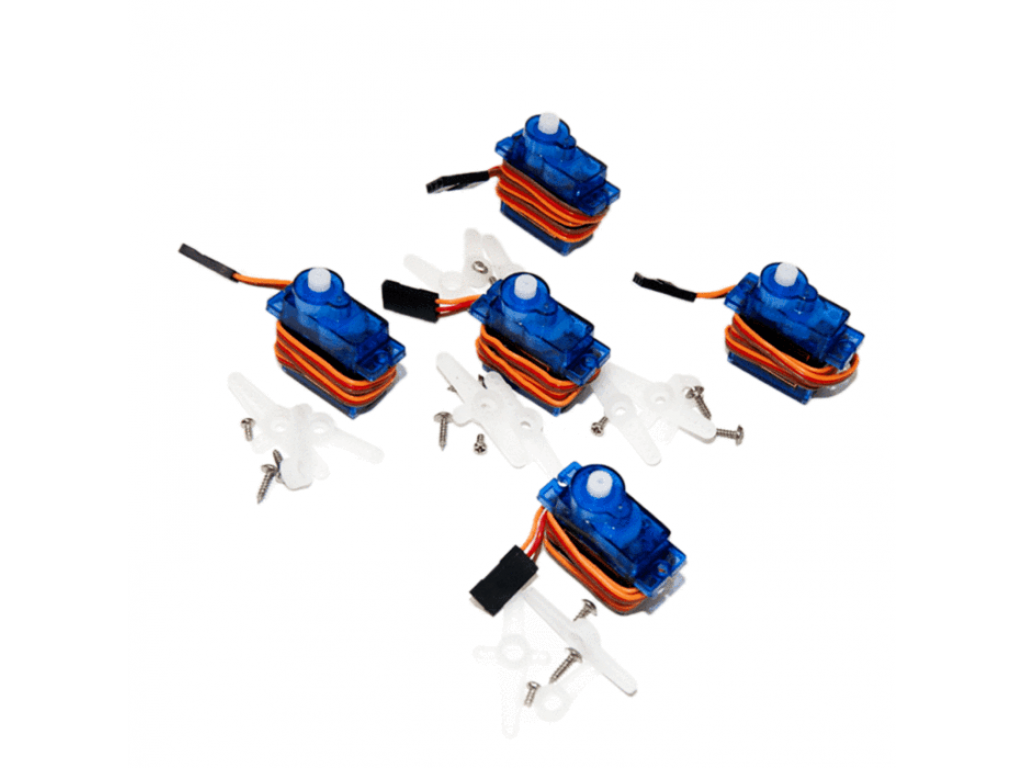

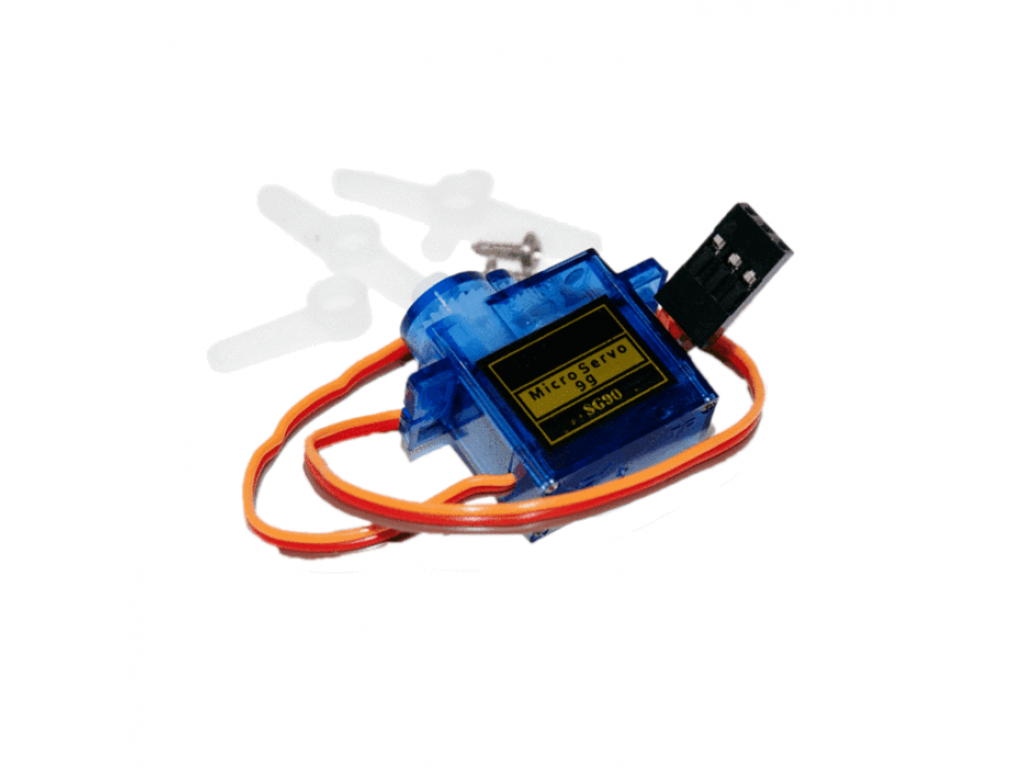

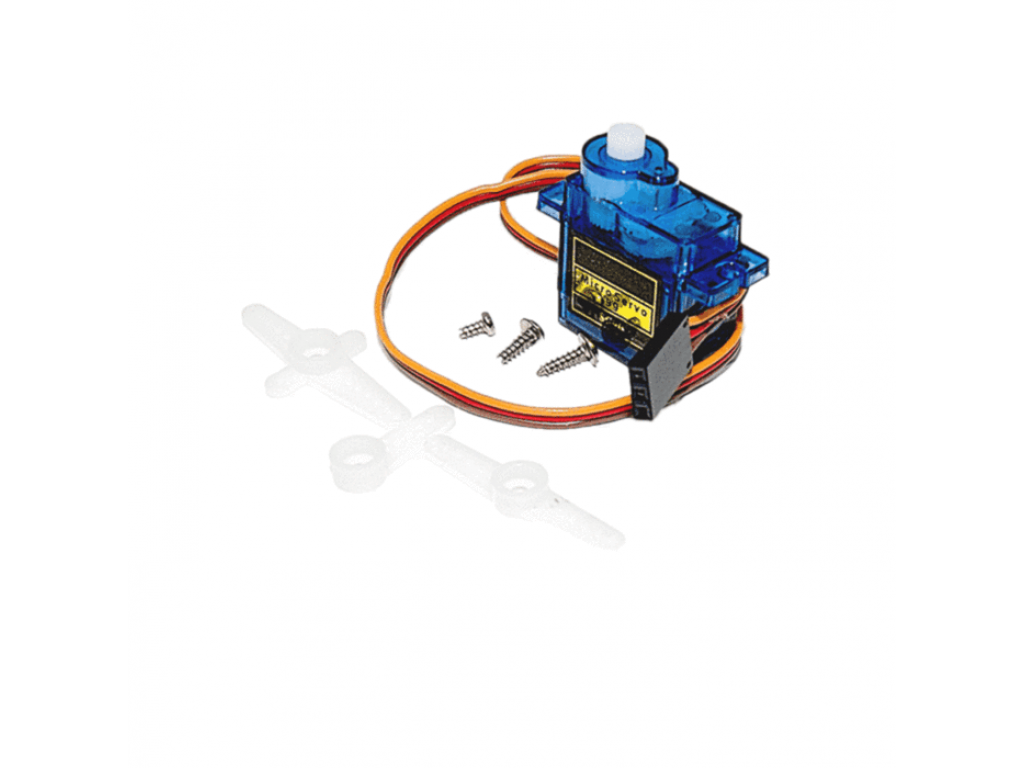

Micro Servo SG90

Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Micro Servo SG90
Based on 0 reviews. - Write a review
5.54€
Ex Tax: 4.50€
3 or more 2.93€
5 or more 2.87€
  • Stock: 25
    25
  • Brand: Tower-Pro
  • Model: SG90 servo
  • Weight: 13.00g
  • pkg: 8.00cm x 6.00cm x 2.00cm
  • SKU: YXC112
282 sold
Product Views: 21308
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
This batch is actual Tower-Pro.

For: RC Helicopter, Plane, Boat, Car, or robot.
Weight : 13.4G
Dimension : 22.8mm x 12.2mm x 28.5mm
Stall Torque : 1.8kg/cm(4.8V )2.2kg/cm(6V)
0.08sec/60degree(6v)
Temperature Range : 0 degree to 55 degree
Operating Speed : 0.1sec/60degree(4.8v),
Dead Band Width : 5 usec
Operation Voltage : 4.8 - 6Volts
Motor Type : coreless motor
Gear Type : All Metal gear
Connector Wire Length : 175mm

SG90 9G Micro Servo Motor For Robot or RC car, helicopter airplane controls
 This is the most popular mini servo. Only weights 9 gram and gives you a 1.5kg.cm torque. Pretty strong regarding its size.  Suitable for Beam type robot.
Features:
Operating speed: 0.3second/ 60degree
Stall Torque : 1.5kg/cm
Operating voltage: 4.2V~6V
Temperature range:  0 C_ 55 C
Dead band width: 10usec
Fit for ALL kind of R/C Toys
Connector Wire Length: 250mm

Write a review

Please login or register to review
Tags: SG90 , actuators , Servo , Modelling
