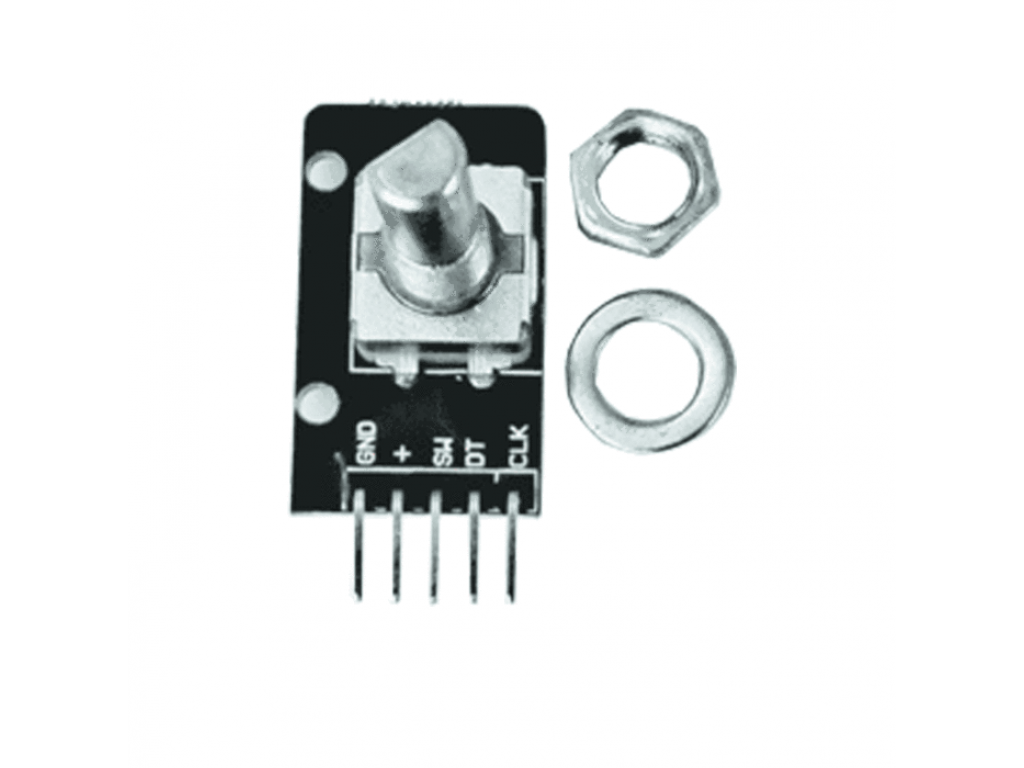

The digital Potentiometer for your project: with our KY-040 rotary encoder, you can navigate through your self-created menu items, or speeds. Unlike analog potentiometers, the angle of rotation is not limited. In a practical modular design. With an additional switching contact!



Pinout Raspberry Pi:

CLK = GPIO16 [Pin 36]
DT = GPIO15 [Pin 10]
SW = GPIO14 [Pin 8]
+ = 3.3 V [Pin 1]
GND = Mass

[Pin 6]



Pinout Arduino:

CLK = [Pin 3]
DT = [Pin 4]
Button = [Pin 5]
+ = [Pin 5V]
GND = [GND]

    There are no reviews for this product.

    Write a review

    Please login or register to review

    KY-040 rotary encoder module

    • Brand: AZ-Delivery
    • Product Code: KY-040
    • Availability: 19
    • { price }}
    • Ex Tax: 2.43€

    • 3 or more 2.93€
    • 5 or more 2.87€

    Tags: Smart Home, Potentiometer, Arduino Accessories, Solderless, Arduino Basics, control, Sensors, RaspberryPi Accessories
